Imperia 3 Column Radiator 1800 x 380mm Bare Metal

SKU: 41.0427

Imperia 3 Column Radiator 1800 x 380mm Bare Metal

Item No: 41.0427

Imperia 3 Column Radiator 1800 x 380mm Bare Metal

We are always on the look out for products and finishes trending in the UK market. We have noticed a trend in bare brick and plain painted walls with traditional engineering items such as small sand casts mounted on the wall.Known in designer circles as the Industrial Chic look.

For those of you looking for Bare Metal finish radiator showing the welds, pressings, sanding and tubes that make up a traditional column radiator, we have introduced this range. We have sealed the metal with clear lacquer to ensure no
impurities are allow to discolour or oxidise the metal.

FEATURES
• Tested to BS EN442 standards.
• Matching colour wall fixing stes.
• Radiator feet option available to ge
t the classic look.
• Material thickness 1.5 mm.
• Doesn't require flow diverter.
• Not suitable for elements.
• Central heating system only.
• 5 Year Manufacturer’s Warranty*
* With conditions.

TECHNICAL INFORMATION
• All measurements are in Height by Width.
• Heat output based on Delta ΔT 30°C and Delta ΔT 50°C.
• For indirect heating systems only.
• Corrosion inhibitor must be added to the heating system and maintained.
• Tappings are the width of the rail and approx. 60mm off the wall.
• Price includes radiator and wall fixing sets, valves / towel hangers / radiator feet are extra.

* Imperia bare metal radiators are handfinished therefore each radiator will have its own unique welding marks and
imperfections that are left on purpose.
Bare Metal colour shown in images are subject to the limitations of the printing process and may appear different.

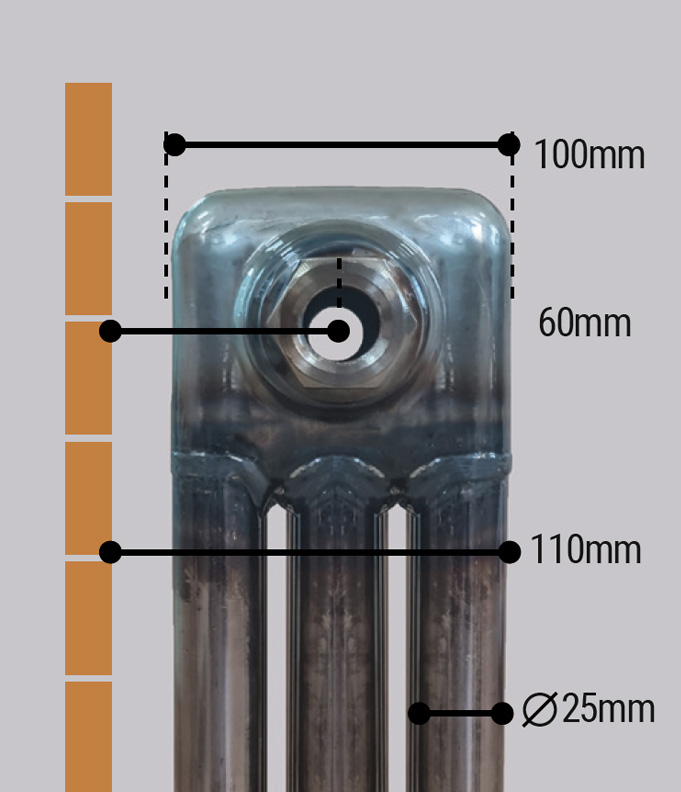

Imperia 3 Column Bare Metal Side View

Quick Links

£537.00 Excl VAT

£644.40 Inc VAT

Low stock

Product Wishlist & Compare Placeholder

BTU Calculator

Free Standard Delivery *

No minimum order value required

SKU	Name	Qty
		1

Package contents modal

Delivery information modal

Product add ons modal

FAQ's

BTU or British Thermal Unit - is the amount of heat needed to increase the temperature of 1lb (one pound) of water by one degree Fahrenheit. This is the imperial measurement, your Installer may work using metric values for this calculation; Watts. Either can be used to choose your radiator.

With radiators, the BTU measurement refers to how much energy is required to heat a room. The higher the BTU is, the greater the radiator’s heat output will be. How effective the radiator will be though, depends on factors such as the size of the room and how well insulated it is. A radiator’s ability to transfer heat will depend on its material, size and surface area as well as the water temperature within the system.

Delta T, or ∆T, specifically relates to the difference in temperature between the water circulating in the central heating system and that of the room or ambient temperature.

Flow in 75°C ,Flow out 65°C = Average water temperature inside radiator is 70°C.

If the room or ambient temperature is 20°C and the average water temperature inside the radiator is 70°C, the Delta T or ∆T value is calculated as 70°C - 20°C = 50°.

A Delta T correction factor allows end users and professionals to find out the actual output of a radiator or towel rail in the range of Delta T variations.

Eastbrook provides Delta T 30° & Delta T 50° outputs. You can use the listed correction factors below to find the actual output at Delta T 60° and other Delta T’s listed below:

ΔT	Correction Factors
70°	1.548
65°	1.406
60°	1.268
50°	1
45°	0.871
40°	0.747
35°	0.627
30°	0.513
25°	0.404

Example: Assuming a radiator or towel rail has a heat output of 750 Watts at ΔT (delta T) = 50°. At ΔT (Delta T) = 60°, the output would be 750 x 1.268 (from the table above) equating to 951 Watts.

Calculator

* = Mandatory field.

Please input all measurements in metres.

Room Type*

Height(M)*
warning

Width(M)*
warning

Length(M)*
warning

Window Area (m2)*
warning

What is below this room?

What is above this room?

Type of outside walls?

Type of windows?

Number of outside walls?

Please correct the above issues before calculating

Results

Required BTU @ΔT50°C:

Required Watts:

You may need more than one radiator to meet the required BTU output.

View matching heating products here

warning Disclaimer: Our calculations are only estimated and are based on information you provide. Our BTU Calculator can only process the most common factors that affect heat loss and may not take into account all factors relating to your particular requirements. Any results provided by our BTU Calculator should not be considered 100% accurate and we accept no liability for any errors resulting from the estimates given.

For completely accurate BTU requirements, we recommend you to refer back to your heating engineer.

All towel rail/radiator outputs are based on Delta T 50°C (ΔT50°C).

warning Please Note: this is a guide only. A radiator with insufficient output may never raise the surface temperature of the radiator to the required level. Outdoor temperatures, external walls, insulation, heated adjacent rooms (i.e. above, below, and to the side) all have a contributing effect. The boiler should have sufficient capacity to supply all connected radiators to the sum of their maximum demand. Larger rooms such as living rooms may require more than one radiator, positioned evenly throughout the room. If this is the case, simply divide the required output between the number of radiators needed.

BTU Calc modal

Quick Links

Description

Imperia 3 Column Bare Metal Side View

Specifications

Information

Colour: Bare Metal

Product Range: Imperia

Product Type: Radiator

Height (mm): 1800

Width (mm): 380

Length (mm): 380

Gross Weight (kg): 34.25

Net Weight (kg): 32.75

Element Power: N/A

Manufacturers Warranty (years): 5

Material: Mild Steel

Orientation: Vertical

BTU Range Delta 60: 7000 - 7499

BTU Delta 60: 5712

Watts Delta 60: 1675

BTU Delta 50: 4522

Watts Delta 50: 1326

BTU Range Delta 50: 5500 - 5999

Style: Radiator

Depth (mm): 100

Projection (mm): 131

Design: 3 Column

Watts Delta 30: 667

BTU Delta 30: 2275

Downloads

Imperia Column Radiator Instructions R25-04.pdf

Imperia 3 Column 1800 x 380 Bare Metal Technical Drawing R25-07.pdf

PDS_41.0427.pdf
