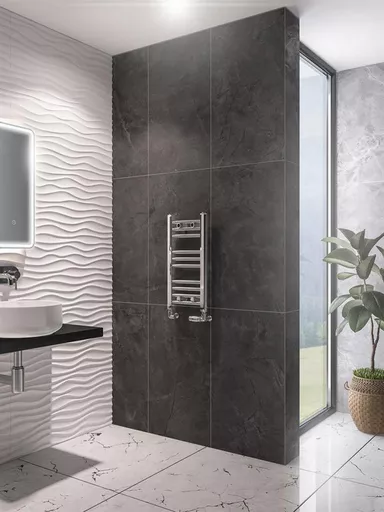

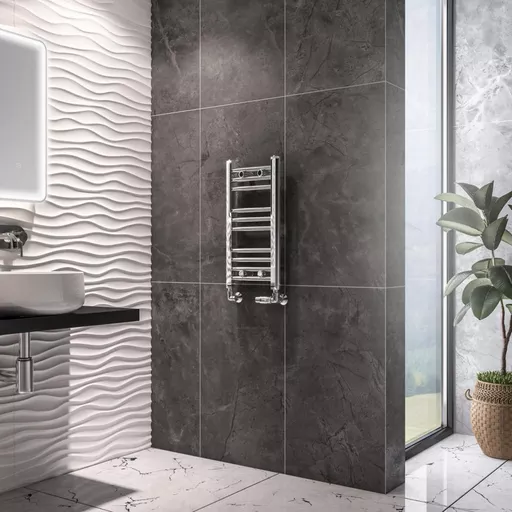

Wingrave 600 x 300 Straight Multirail Chrome

SKU: 89.0686

Wingrave 600 x 300 Straight Multirail Chrome

Item No: 89.0686

Wingrave 600 x 300 Straight Multirail Chrome

A contemporary straight towel radiator range which comes in a very wide colour selection such as chrome, gloss white, matt white, matt grey, matt anthracite, matt black and matt cobalt blue. In a wide variety of sizes, this towel rail range not only adds value to your bathroom with design simplicity but also keeps your towels warm.

FEATURES
• 22mm diameter horizontal round tubes.
• 40 x 30mm vertical profiles.
• Tested to BS EN442 standards.
• Horizontal sizes to fit under windows.
• 5 Year Manufacturer’s Warranty*
• Can be single, dual fuel or all electric.
* With conditions.

TECHNICAL INFORMATION
• All measurements are in Height by Width.
• Heat output based on Delta ΔT 30°C and Delta ΔT 50°C.
• Radiators that are electric only are restricted to the heat output of the elements.
• Element size can be increased to full capacity of rail if using element type D, E, F or G.
• For indirect heating systems only.
• Corrosion inhibitor must be added to the heating system and maintained.
• Tappings are approx. 44mm less than the width of the rail and approx. 65mm off the wall.
• Price includes radiator and wall fixing sets, valves / towel hangers are extra.

Quick Links

Package Contents

£90.00 Excl VAT

£108.00 Inc VAT

In stock

Product Wishlist & Compare Placeholder

BTU Calculator

Optional Extras

Free Standard Delivery *

No minimum order value required

SKU	Name	Qty
89.0686_DF		1
89.0686_E		1
89.0686_H		1

Package contents modal

Delivery information modal

Product add ons modal

FAQ's

BTU or British Thermal Unit - is the amount of heat needed to increase the temperature of 1lb (one pound) of water by one degree Fahrenheit. This is the imperial measurement, your Installer may work using metric values for this calculation; Watts. Either can be used to choose your radiator.

With radiators, the BTU measurement refers to how much energy is required to heat a room. The higher the BTU is, the greater the radiator’s heat output will be. How effective the radiator will be though, depends on factors such as the size of the room and how well insulated it is. A radiator’s ability to transfer heat will depend on its material, size and surface area as well as the water temperature within the system.

Delta T, or ∆T, specifically relates to the difference in temperature between the water circulating in the central heating system and that of the room or ambient temperature.

Flow in 75°C ,Flow out 65°C = Average water temperature inside radiator is 70°C.

If the room or ambient temperature is 20°C and the average water temperature inside the radiator is 70°C, the Delta T or ∆T value is calculated as 70°C - 20°C = 50°.

A Delta T correction factor allows end users and professionals to find out the actual output of a radiator or towel rail in the range of Delta T variations.

Eastbrook provides Delta T 30° & Delta T 50° outputs. You can use the listed correction factors below to find the actual output at Delta T 60° and other Delta T’s listed below:

ΔT	Correction Factors
70°	1.548
65°	1.406
60°	1.268
50°	1
45°	0.871
40°	0.747
35°	0.627
30°	0.513
25°	0.404

Example: Assuming a radiator or towel rail has a heat output of 750 Watts at ΔT (delta T) = 50°. At ΔT (Delta T) = 60°, the output would be 750 x 1.268 (from the table above) equating to 951 Watts.

Calculator

* = Mandatory field.

Please input all measurements in metres.

Room Type*

Height(M)*
warning

Width(M)*
warning

Length(M)*
warning

Window Area (m2)*
warning

What is below this room?

What is above this room?

Type of outside walls?

Type of windows?

Number of outside walls?

Please correct the above issues before calculating

Results

Required BTU @ΔT50°C:

Required Watts:

You may need more than one radiator to meet the required BTU output.

View matching heating products here

warning Disclaimer: Our calculations are only estimated and are based on information you provide. Our BTU Calculator can only process the most common factors that affect heat loss and may not take into account all factors relating to your particular requirements. Any results provided by our BTU Calculator should not be considered 100% accurate and we accept no liability for any errors resulting from the estimates given.

For completely accurate BTU requirements, we recommend you to refer back to your heating engineer.

All towel rail/radiator outputs are based on Delta T 50°C (ΔT50°C).

warning Please Note: this is a guide only. A radiator with insufficient output may never raise the surface temperature of the radiator to the required level. Outdoor temperatures, external walls, insulation, heated adjacent rooms (i.e. above, below, and to the side) all have a contributing effect. The boiler should have sufficient capacity to supply all connected radiators to the sum of their maximum demand. Larger rooms such as living rooms may require more than one radiator, positioned evenly throughout the room. If this is the case, simply divide the required output between the number of radiators needed.

BTU Calc modal

Quick Links

Variant Code

characters left

Do you want it fluid filled? - £60.00
Fluid Filling

41.0581 - £51.00
Type A+ Eco Element 100W

Qty

Product Range: Type A+ Eco Element

Product Type: Heating Element

Height (mm): 29

Width (mm): 29

Length (mm): 135

Gross Weight (kg): 0.519

Net Weight (kg): 0.252

Element Power: 100W

Manufacturers Warranty (years): 1

Style: Heating Element

Design: Type A+ Eco

Watts: 100

8.016 - £65.00
Type A+ Element 100W

Qty

Product Range: Type A+ Element

Product Type: Heating Element

Gross Weight (kg): 0.75

Net Weight (kg): 0.6

Element Power: 100W

Manufacturers Warranty (years): 1

Style: Heating Element

Design: Type A+

Watts: 100

8.009 - £67.00
100 watt Type A element White

Qty

Colour: White

Product Range: Type A Element

Product Type: Heating Element

Gross Weight (kg): 1.387

Net Weight (kg): 1

Element Power: 100W

Manufacturers Warranty (years): 1

Style: Heating Element

Design: Type A

Watts: 100

Description

Specifications

Information

Colour: Chrome

Product Range: Wingrave

Product Type: Towel Rail

Height (mm): 600

Width (mm): 300

Gross Weight (kg): 2.92

Net Weight (kg): 2.41

Element Power: 150W

Manufacturers Warranty (years): 5

Material: Mild Steel

BTU Delta 60: 447

Watts Delta 60: 131

BTU Delta 50: 359

Watts Delta 50: 105

Style: Towel Rail

Projection (mm): 79

Design: Straight

Watts Delta 30: 56

BTU Delta 30: 191

Downloads

89.0686_Wingrave Straight and Curved Instructions R20-02.pdf

89.0686_Wingrave Straight 600 x 300 Technical Drawing R21-11.pdf

PDS_89.0686.pdf
