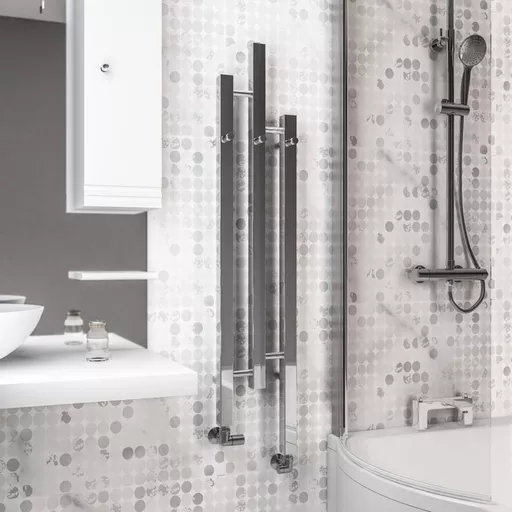

Conwy 1200 x 220 Radiator Chrome

SKU: 41.0714

Conwy 1200 x 220 Radiator Chrome

Item No: 41.0714

Conwy 1200 x 220 Radiator Chrome

A masterpiece for your bathroom or any other room. The square vertical bars at the top can be used as towel / bathrobe hangers and the 3 x robe hooks can be used to dry your towels too. This exceptional design is available in 4 colour options.

FEATURES

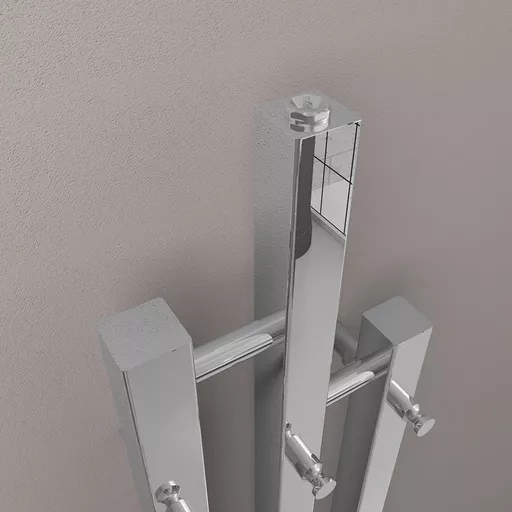

• 40 x 40mm vertical profiles.
• Comes with pre-fitted 3 x robe hooks.
• Rear fixing metal wall brackets.
• Tested to BS EN442 standards.
• State-of-the-Art welding technology.
• 4 colours available from stock.
• Matching colour wall fixing sets.
• Can be single, dual fuel or all electric.
• 5 Year Manufacturer’s Warranty*
* With conditions.

TECHNICAL INFORMATION
• All measurements are in Height by Width.
• Heat output based on Delta ΔT 30°C and Delta ΔT 50°C.
• For indirect heating systems only.
• Radiators that are electric only are restricted to the heat output of the elements.
• Element size can be increased to full capacity of rail if using element type D, E, F or G.
(Type F & G elements suitable for all electric only)
• Corrosion inhibitor must be added to the heating system and maintained.
• Tappings are 180mm and approx. 64-74mm off the wall.
• Tappings height difference 100mm.
• Projection from wall 84-94mm.
• Price includes radiator and wall fixing sets, valves / towel hangers are extra.

Quick Links

£197.00 Excl VAT

£236.40 Inc VAT

In stock

Product Wishlist & Compare Placeholder

BTU Calculator

Optional Extras

Free Standard Delivery *

No minimum order value required

SKU	Name	Qty
		1

Package contents modal

Delivery information modal

Product add ons modal

FAQ's

BTU or British Thermal Unit - is the amount of heat needed to increase the temperature of 1lb (one pound) of water by one degree Fahrenheit. This is the imperial measurement, your Installer may work using metric values for this calculation; Watts. Either can be used to choose your radiator.

With radiators, the BTU measurement refers to how much energy is required to heat a room. The higher the BTU is, the greater the radiator’s heat output will be. How effective the radiator will be though, depends on factors such as the size of the room and how well insulated it is. A radiator’s ability to transfer heat will depend on its material, size and surface area as well as the water temperature within the system.

Delta T, or ∆T, specifically relates to the difference in temperature between the water circulating in the central heating system and that of the room or ambient temperature.

Flow in 75°C ,Flow out 65°C = Average water temperature inside radiator is 70°C.

If the room or ambient temperature is 20°C and the average water temperature inside the radiator is 70°C, the Delta T or ∆T value is calculated as 70°C - 20°C = 50°.

A Delta T correction factor allows end users and professionals to find out the actual output of a radiator or towel rail in the range of Delta T variations.

Eastbrook provides Delta T 30° & Delta T 50° outputs. You can use the listed correction factors below to find the actual output at Delta T 60° and other Delta T’s listed below:

ΔT	Correction Factors
70°	1.548
65°	1.406
60°	1.268
50°	1
45°	0.871
40°	0.747
35°	0.627
30°	0.513
25°	0.404

Example: Assuming a radiator or towel rail has a heat output of 750 Watts at ΔT (delta T) = 50°. At ΔT (Delta T) = 60°, the output would be 750 x 1.268 (from the table above) equating to 951 Watts.

Calculator

* = Mandatory field.

Please input all measurements in metres.

Room Type*

Height(M)*
warning

Width(M)*
warning

Length(M)*
warning

Window Area (m2)*
warning

What is below this room?

What is above this room?

Type of outside walls?

Type of windows?

Number of outside walls?

Please correct the above issues before calculating

Results

Required BTU @ΔT50°C:

Required Watts:

You may need more than one radiator to meet the required BTU output.

View matching heating products here

warning Disclaimer: Our calculations are only estimated and are based on information you provide. Our BTU Calculator can only process the most common factors that affect heat loss and may not take into account all factors relating to your particular requirements. Any results provided by our BTU Calculator should not be considered 100% accurate and we accept no liability for any errors resulting from the estimates given.

For completely accurate BTU requirements, we recommend you to refer back to your heating engineer.

All towel rail/radiator outputs are based on Delta T 50°C (ΔT50°C).

warning Please Note: this is a guide only. A radiator with insufficient output may never raise the surface temperature of the radiator to the required level. Outdoor temperatures, external walls, insulation, heated adjacent rooms (i.e. above, below, and to the side) all have a contributing effect. The boiler should have sufficient capacity to supply all connected radiators to the sum of their maximum demand. Larger rooms such as living rooms may require more than one radiator, positioned evenly throughout the room. If this is the case, simply divide the required output between the number of radiators needed.

BTU Calc modal

Quick Links

Description

Specifications

Information

Colour: Chrome

Product Range: Conwy

Product Type: Towel Rail

Height (mm): 1200

Width (mm): 220

Length (mm): 81

Gross Weight (kg): 7.72

Net Weight (kg): 5.9

Element Power: 100W

Manufacturers Warranty (years): 5

Material: Mild Steel

Orientation: Vertical

BTU Range Delta 60: 500 - 999

BTU Delta 60: 621

Watts Delta 60: 182

BTU Delta 50: 492

Watts Delta 50: 144

BTU Range Delta 50: 500 - 999

Style: Towel Rail

Projection (mm): 94

Watts Delta 30: 75

BTU Delta 30: 256

Downloads

41.0714 Instructions.pdf

41.0714 Tech Drawing.pdf

PDS_41.0714.pdf

Related Products

{
    "currency": {
        "id": "1",
        "name": "Pound Sterling",
        "code": "GBP",
        "symbol_left": "\u00a3",
        "symbol_right": "",
        "decimal_point": ".",
        "decimal_places": "2",
        "thousands_separator": "",
        "deleted": "0",
        "created": "2025-09-08 08:56:45",
        "updated": ""
    },
    "totals": {
        "net": 0,
        "discount_net": 0,
        "discount_gross": 0,
        "vat": 0,
        "delivery_gross": 0,
        "delivery_net": 0,
        "discounted": 0,
        "gross": 0,
        "undiscounted_total": 0,
        "total_vat": 0,
        "total": 0,
        "undiscounted_gross": 0,
        "amount_due": 0,
        "voucher_value": 0,
        "delivery": 0,
        "delivery_ex_vat": 0,
        "discount_value": 0
    }
}

basket

Conwy 1200 x 220 Radiator Chrome

Conwy 1200 x 220 Radiator Chrome

Information

Related Products

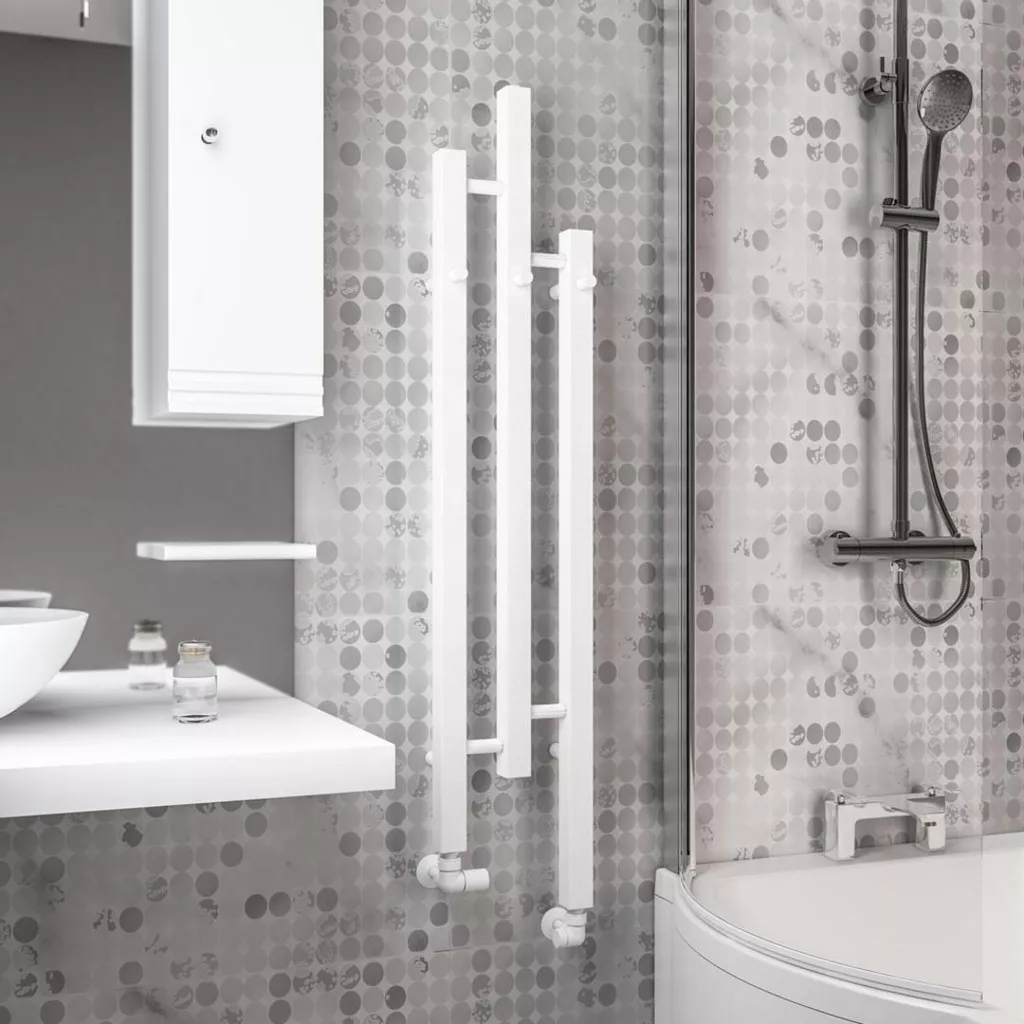

Conwy 1200 x 220 Radiator Matt White

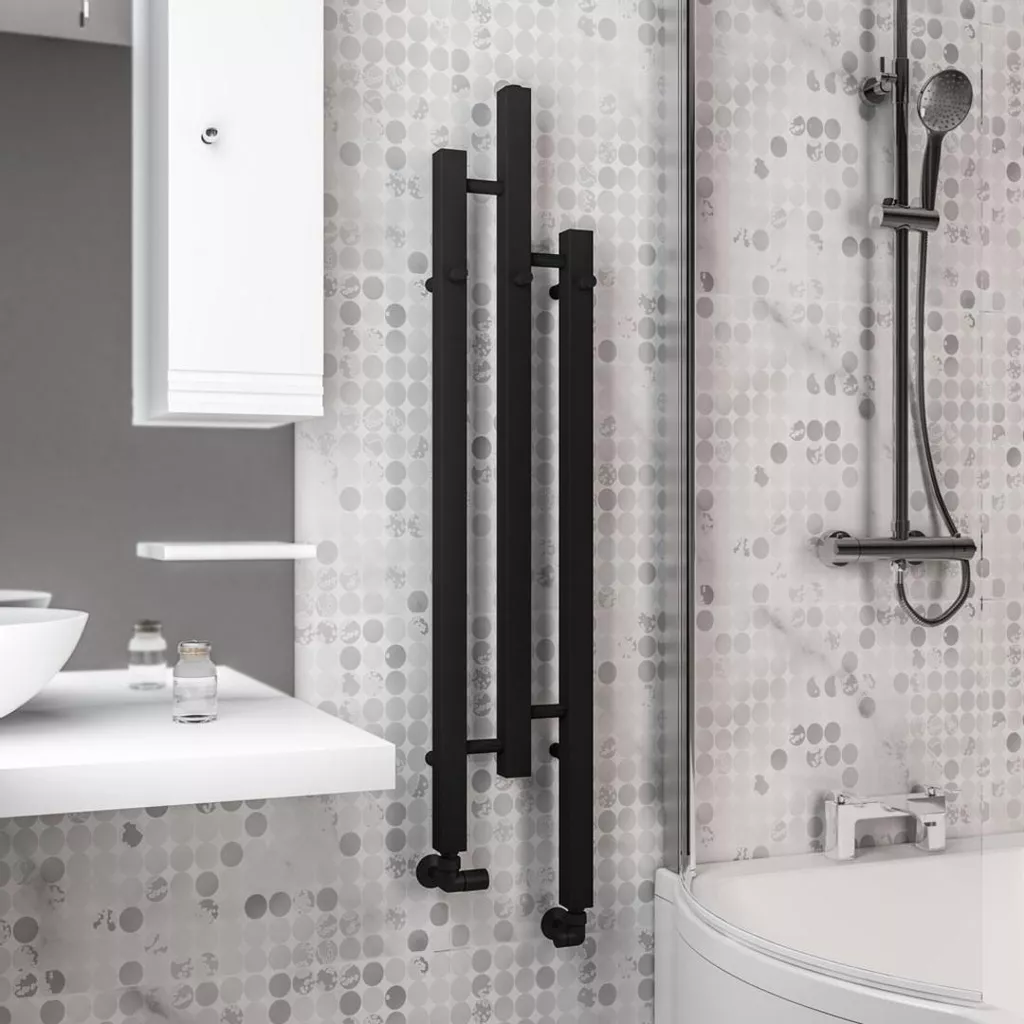

Conwy 1200 x 220 Radiator Matt Black

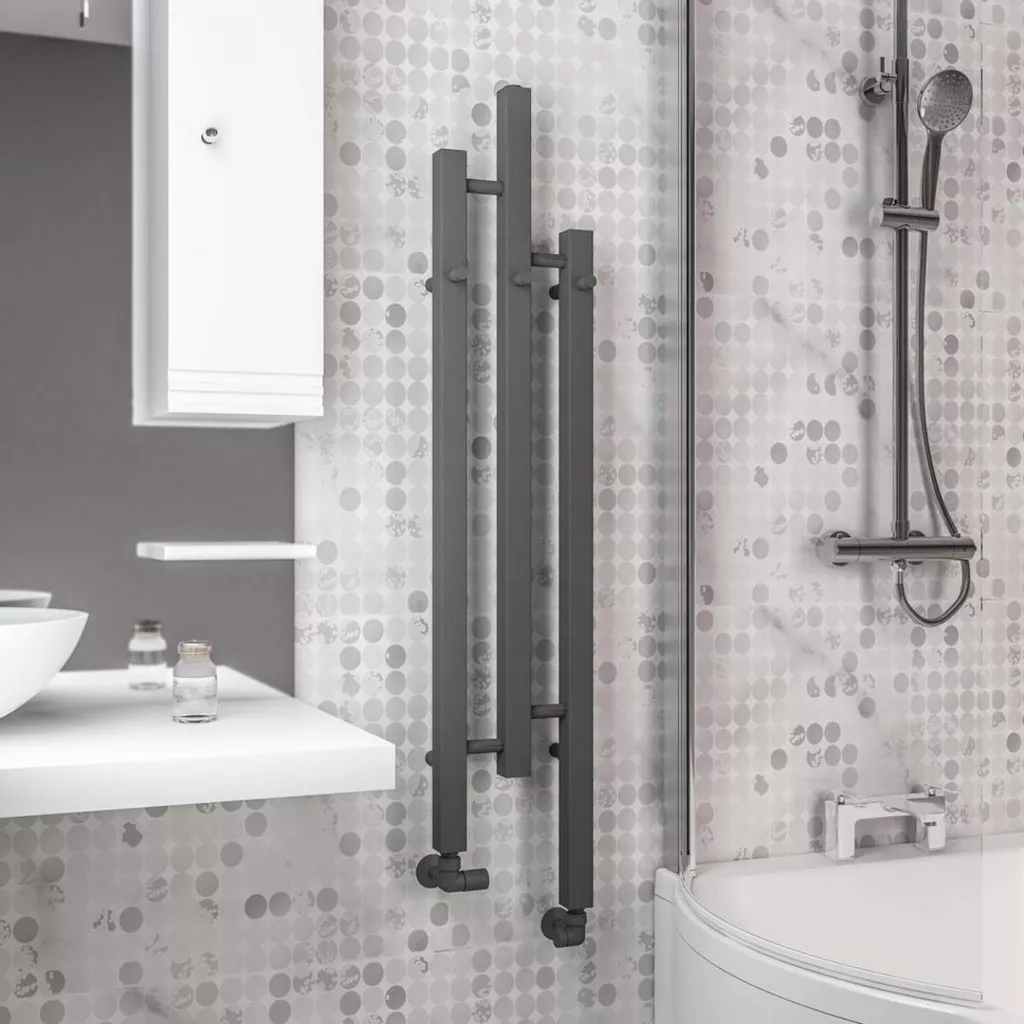

Conwy 1200 x 220 Radiator Matt Anthracite
