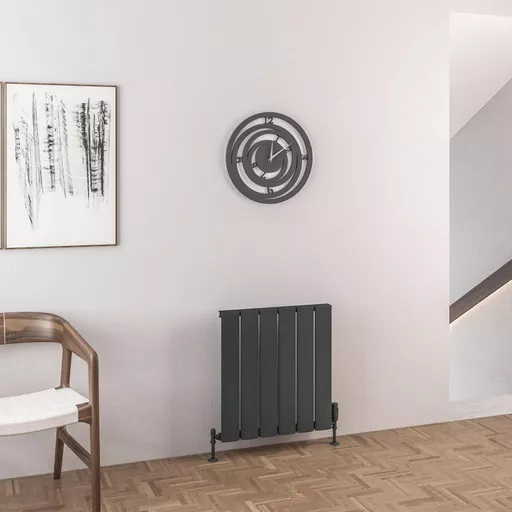

Malmesbury 600 x 565 Aluminium Radiator Matt Anthracite

SKU: 89.0157

Malmesbury 600 x 565 Aluminium Radiator Matt Anthracite

Item No: 89.0157

Malmesbury 600 x 565 Aluminium Radiator Matt Anthracite

Quick Links

Package Contents

£307.00 Excl VAT

£368.40 Inc VAT

In stock

Product Wishlist & Compare Placeholder

Optional Extras

Free Standard Delivery *

No minimum order value required

SKU	Name	Qty
89.0157_DF		1
89.0157_E		1
89.0157_H		1

Package contents modal

Delivery information modal

Product add ons modal

FAQ's

BTU or British Thermal Unit - is the amount of heat needed to increase the temperature of 1lb (one pound) of water by one degree Fahrenheit. This is the imperial measurement, your Installer may work using metric values for this calculation; Watts. Either can be used to choose your radiator.

With radiators, the BTU measurement refers to how much energy is required to heat a room. The higher the BTU is, the greater the radiator’s heat output will be. How effective the radiator will be though, depends on factors such as the size of the room and how well insulated it is. A radiator’s ability to transfer heat will depend on its material, size and surface area as well as the water temperature within the system.

Delta T, or ∆T, specifically relates to the difference in temperature between the water circulating in the central heating system and that of the room or ambient temperature.

Flow in 75°C ,Flow out 65°C = Average water temperature inside radiator is 70°C.

If the room or ambient temperature is 20°C and the average water temperature inside the radiator is 70°C, the Delta T or ∆T value is calculated as 70°C - 20°C = 50°.

A Delta T correction factor allows end users and professionals to find out the actual output of a radiator or towel rail in the range of Delta T variations.

Eastbrook provides Delta T 30° & Delta T 50° outputs. You can use the listed correction factors below to find the actual output at Delta T 60° and other Delta T’s listed below:

ΔT	Correction Factors
70°	1.548
65°	1.406
60°	1.268
50°	1
45°	0.871
40°	0.747
35°	0.627
30°	0.513
25°	0.404

Example: Assuming a radiator or towel rail has a heat output of 750 Watts at ΔT (delta T) = 50°. At ΔT (Delta T) = 60°, the output would be 750 x 1.268 (from the table above) equating to 951 Watts.

Calculator

* = Mandatory field.

Please input all measurements in metres.

Room Type*

Height(M)*
warning

Width(M)*
warning

Length(M)*
warning

Window Area (m2)*
warning

What is below this room?

What is above this room?

Type of outside walls?

Type of windows?

Number of outside walls?

Please correct the above issues before calculating

Results

Required BTU @ΔT50°C:

Required Watts:

You may need more than one radiator to meet the required BTU output.

View matching heating products here

warning Disclaimer: Our calculations are only estimated and are based on information you provide. Our BTU Calculator can only process the most common factors that affect heat loss and may not take into account all factors relating to your particular requirements. Any results provided by our BTU Calculator should not be considered 100% accurate and we accept no liability for any errors resulting from the estimates given.

For completely accurate BTU requirements, we recommend you to refer back to your heating engineer.

All towel rail/radiator outputs are based on Delta T 50°C (ΔT50°C).

warning Please Note: this is a guide only. A radiator with insufficient output may never raise the surface temperature of the radiator to the required level. Outdoor temperatures, external walls, insulation, heated adjacent rooms (i.e. above, below, and to the side) all have a contributing effect. The boiler should have sufficient capacity to supply all connected radiators to the sum of their maximum demand. Larger rooms such as living rooms may require more than one radiator, positioned evenly throughout the room. If this is the case, simply divide the required output between the number of radiators needed.

BTU Calc modal

Quick Links

Variant Code

1000 characters left

Do you want it fluid filled? - £60.00
Fluid Filling

41.0583 - £51.00
Type A+ Eco Element 300W

Qty

Gross Weight (kg): 0.659

Net Weight (kg): 0.322

Height (mm): 29

Length (mm): 250

Width (mm): 29

Design: Type A+ Eco

Element Power: 300W

Manufacturers Warranty (years): 1

Product Range: Type A+ Eco Element

Product Type: Heating Element

Style: Heating Element

Watts: 300

8.564 - £335.00
Type H Element Wi-Fi Horizontal 300 W Matt Anthracite

Qty

Gross Weight (kg): 0.636

Net Weight (kg): 0.45

Colour: Matt Anthracite

Design: Type H Wi-Fi

Element Power: 300W

Manufacturers Warranty (years): 2

Product Range: Type H Wi-Fi Element

Product Type: Heating Element

Style: Heating Element

Watts: 300

8.544 - £299.00
Type H Element Horizontal 300 W Matt Anthracite

Qty

Gross Weight (kg): 0.636

Net Weight (kg): 0.45

Colour: Matt Anthracite

Design: Type H

Element Power: 300W

Manufacturers Warranty (years): 2

Product Range: Type H Element

Product Type: Heating Element

Style: Heating Element

Watts: 300

8.300 - £187.00
Up to 300W TypeC element (inc rad stat) horizontal Chrome

Qty

Gross Weight (kg): 1.417

Net Weight (kg): 0.72

Colour: Chrome

Design: Type C

Element Power: 300W

Manufacturers Warranty (years): 1

Product Range: Type C Element

Product Type: Heating Element

Style: Heating Element

Watts: 300

8.001 - £70.00
300 watt Type A element White

Qty

Gross Weight (kg): 1.042

Net Weight (kg): 0.6

Colour: White

Design: Type A

Element Power: 300W

Manufacturers Warranty (years): 1

Product Range: Type A Element

Product Type: Heating Element

Style: Heating Element

Watts: 300

8.018 - £68.00
Type A+ Element 300W

Qty

Gross Weight (kg): 0.85

Net Weight (kg): 0.7

Design: Type A+

Element Power: 300W

Manufacturers Warranty (years): 1

Product Range: Type A+ Element

Product Type: Heating Element

Style: Heating Element

Watts: 300

Description

Malmesbury 600 x 565 Aluminium Radiator Matt Anthracite

Specifications

Information

Gross Weight (kg): 6.81

Net Weight (kg): 5.04

Height (mm): 600

Width (mm): 565

Colour: Matt Anthracite

Element Power: 300W

Manufacturers Warranty (years): 5

Material: Aluminium

Orientation: Horizontal

Product Range: Malmesbury

Product Type: Radiator

Style: Radiator

BTU Delta 50: 1576

Watts Delta 50: 462

BTU Range Delta 50: 1500 - 1999

Watts Delta 30: 240

BTU Delta 30: 819

Downloads

89.0157 Instructions Malmesbury Aluminium Radiator R23-06.pdf

89.0157_Malmesbury Horizontal 600 x 565 Technical Drawing R21-08.pdf

PDS_89.0157.pdf
